Unit | PAC1811

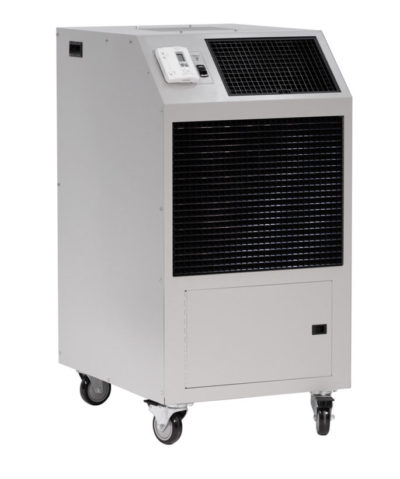

PAC1811 Portable Air-Cooled Spot Cooling Air Conditioner

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

  • Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
  • Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
  • EER is determined at high fan speed, with condenser discharge air ducted into another area
  • CFM with free discharge
  • Amps & Watts at 115 Volts

COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE

The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).

AMPS14.1
COMPRESSOR HP1 1/2
COMPRESSOR LRA63
COMPRESSOR TYPEROTARY
COND CFM930
COND MOTOR HP1/8
CONDENSATE TANK5 Gallon
COOLING CAPACITY16,800 BTHU
DEPTH29.5″
EER10.0
EVAP CFM – HIGH600
EVAP MOTOR HP1/8
HEIGHT46.7″
IN RUSH AMPS75
NET WEIGHT260 lbs.
PLUG TYPE5-20P, LCDI
REFRIGERANT CHARGE40 oz R-410A
VOLTAGE115V, 60 Hz, 1PH
TOTAL WATTS1670
WIDTH24.0″
