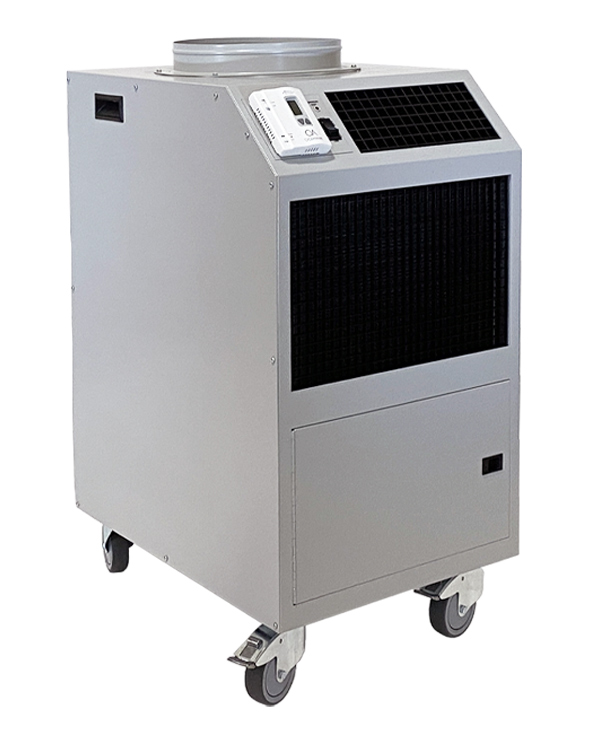

PAC1211 PORTABLE AIR-COOLED SPOT COOLING AIR CONDITIONER
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- EER is determined at high fan speed, with condenser discharge air ducted into another area
- CFM with free discharge
- Amps & Watts at 115 Volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 10.4 |
| COMPRESSOR HP | 1 |
| COMPRESSOR LRA | 50 |
| COMPRESSOR TYPE | ROTARY |
| COND CFM | 580 |
| COND MOTOR HP | 1/8 |
| CONDENSATE TANK | 5 Gallon |
| COOLING CAPACITY | 11,800 BTUH |
| DEPTH | 24.7″ |
| EER | 10.0 |
| EVAP CFM – HIGH | 400 |
| EVAP MOTOR HP | 1/8 |
| HEIGHT | 38.7″ |
| IN RUSH AMPS | 60 |
| NET WEIGHT | 180 lbs. |
| PLUG TYPE | 5-15P, LCDI |
| REFRIGERANT CHARGE | 18 oz R-410A |
| VOLTAGE | 115V, 60 Hz, 1PH |
| TOTAL WATTS | 1180 |
| WIDTH | 20.0″ |
