Unit | OWC3634

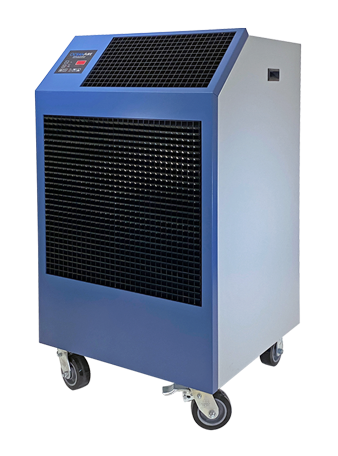

OWC3634 Deluxe Portable Water-Cooled Commercial Air Conditioner

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

  • Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
  • Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
  • CFM with free discharge
  • Amps & Watts at 460 Volts
  • Also available with Quick Connect hose fittings

COOLING AMBIENT OPERATING RANGE 65º TO 105º

NOT APPROVED FOR OUTDOOR USE

The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).

AMPS4.7
COMPRESSOR HP3
COMPRESSOR LRA35
COMPRESSOR TYPESCROLL
CONDENSATE REMOVALPUMP AUTOMATIC (20′ Vertical Lift)
CONDENSER WATER FLOW at 60⁰F WATER IN2.2 GPM
CONDENSER WATER FLOW at 85⁰F WATER IN9.0 GPM
COOLING CAPACITY36,100 BTUH
DEPTH21.5″
EER13.4
EVAP CFM – HIGH1200
EVAP MOTOR HP1/3
HEIGHT51.0″
IN RUSH AMPS48
NET WEIGHT310 lbs.
PLUG TYPEL16-20P
REFRIGERANT CHARGE24 oz R-410A
VOLTAGE460V, 60 Hz, 3PH
WATER LINE CONNECTIONS (WATER-IN & WATER-OUT)5/8 MF
WATER LINE CONNECTIONS (DRAIN)3/8 MF
TOTAL WATTS2700
WIDTH28.2″
