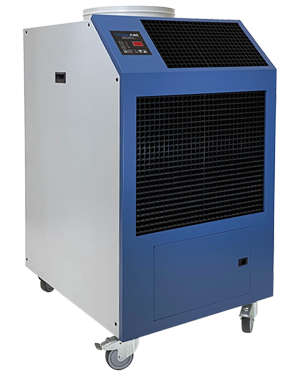

20ACH3632 Deluxe Portable Heat Pump and Spot Cooling Commercial Air Conditioner

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

  • Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
  • Heating Capacity is total BTUH at 70ºDB/60ºWB indoor, 47ºDB/43ºWB Outdoor
  • Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
  • EER is determined at high fan speed, with condenser discharge air ducted into another area
  • CFM with free discharge
  • Amps & Watts at 208 Volts

COOLING AMBIENT OPERATING RANGE 65º TO 105º
HEATING AMBIENT OPERATING RANGE 40º TO 85º

NOT APPROVED FOR OUTDOOR USE

The OceanAire Limited Warranty covers all OceanAire products1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).

AMPS17.2
COMPRESSOR HP3
COMPRESSOR LRA77
COMPRESSOR TYPESCROLL
COND CFM1390
COND MOTOR HP1
CONDENSATE TANK5 Gallon
COOLING CAPACITY36,050 BTUH
DEPTH37.0″
EER10.0
EVAP CFM – HIGH1200
EVAP MOTOR HP1/3
HEATING CAPACITY32,500 BTUH
HEIGHT52.7″
IN RUSH AMPS93
NET WEIGHT365 lbs.
PLUG TYPEL15-30P
REFRIGERANT CHARGE66 oz R-410A
VOLTAGE208-230V, 60 Hz, 3PH
TOTAL WATTS3620
WIDTH28.2″
