Unit | 2OAC3632

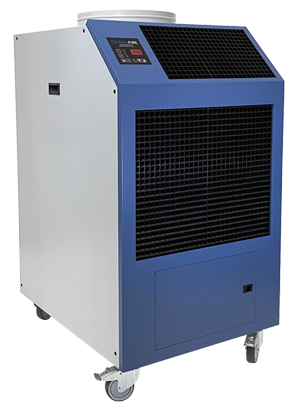

2OAC3632 Deluxe Portable Commercial Air Conditioner

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

  • Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
  • Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
  • EER is determined at high fan speed, with condenser discharge air ducted into another area
  • CFM with free discharge
  • Amps & Watts at 208 Volts

COOLING AMBIENT OPERATING RANGE 65º TO 105º

NOT APPROVED FOR OUTDOOR USE

The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).

AMPS17.2
COMPRESSOR HP3
COMPRESSOR LRA77
COMPRESSOR TYPESCROLL
COND CFM1390
COND MOTOR HP1
CONDENSATE TANK5 Gallon
COOLING CAPACITY36,050 BTUH
DEPTH37″
EER10.0
EVAP CFM – HIGH1200
EVAP MOTOR HP1/3
HEIGHT52.7″
IN RUSH AMPS93
NET WEIGHT365 lbs.
PLUG TYPEL15-30P
REFRIGERANT CHARGE66 oz R-410A
VOLTAGE208-230V, 60 Hz,3PH
TOTAL WATTS3620
WIDTH28.2″
